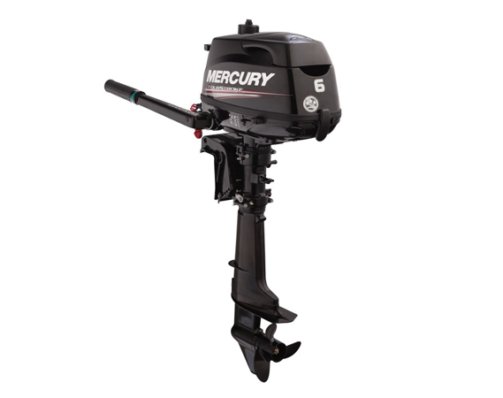

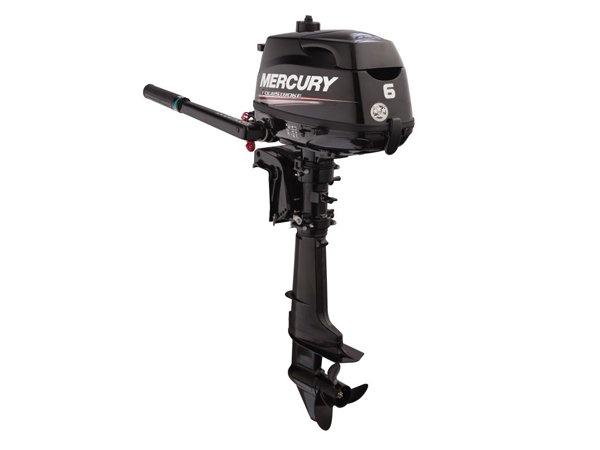

2017 Mercury 6 HP 6MH Outboard Motor
The Mercury 6 HP Outboard Model # MH at just 57 Lbs with an integrated gas tank is truly a portable outboard. This 1 cylinder outboard features an easy manual starting with a front mounted gear shift lever. The shaft is the short 15 inch. Standard feature on this 6 HP Mercury outboard engine is an external tank connection. This portable outboard is perfect for small jon boats, skiffs and as a power source for your sailboat.
2017 Mercury 6 HP 6MH Outboard Motor
- Compact and Lightweight
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes
- Forward-Neutral-Reverse Gear Shift
- Adjustable Steering Tension Control
- Forward Mounted Gear Shift Selector
- Twist-Grip Throttle with Tension Control
- Integrated Carry Handle
- Thermostat Controlled Water Cooling
- Shallow Water Drive; 6 Trim Positions
- Quiet Through-Propeller-Hub Exhaust
- 1.15 Liter (.30 Gallon) Integral Fuel Tank
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty
2017 Mercury 6 HP 6MH Outboard Motor
| Model |
6MH |
| Model Year |
2017 |
| SKU |
6MH-17 |
| Weight |
57.0000 |
| Manufacturer |
Mercury |
| Country of Manufacture |
Japan |
| Horsepower |
6hp |
| Shaft Length |
15″ (Short) |
| Steering |
Tiller |
| Starting |
Manual |
| Trim & Tilt |
Manual |
| Fuel Delivery |
Carburetor |
| Fuel Tank |
Internal |
| Cylinder(s) |
1 |
| Displacement |
7.5/123 |
| Bore and Stroke |
2.32 x 1.77 |
| Full Throttle RPM Range |
5000-6000 |
| Ignition System |
CDI w/electric spark advance |
| Induction Scavenging |
OHV |
| Valves per Cylinder |
2 |
| Fuel Type |
CDI w/electric spark advance |
| Fuel Tank / Fuel Line |
0.3 US Gallon (1.15 liter) |
| Oil Type |
Mercury 4-Stroke Outboard Oil |
| Oil Capacity |
450 mL / 15 oz |
| Lubrication |
Wet sump |
| Alternator |
Optional 12V 50W 4A (installation required) |
| Cooling System |
Water-cooled w/thermostat |
| Saltwater Rated |
YES |
| Gear Ratio |
2.15:1 |
| Gear Shift |
Forward-Neutral-Reverse (forward mounted shift lever) |
| Propeller |
7.7″ Diameter X 8.0″ Pitch 3-Blade Aluminum |
| Internal Battery |
No |
2017 Mercury 6 HP 6MH Outboard Motor
What’s in the box?
- Integral Fuel Tank (0.3 gal)
- Owner’s Manual
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Tool Kit
