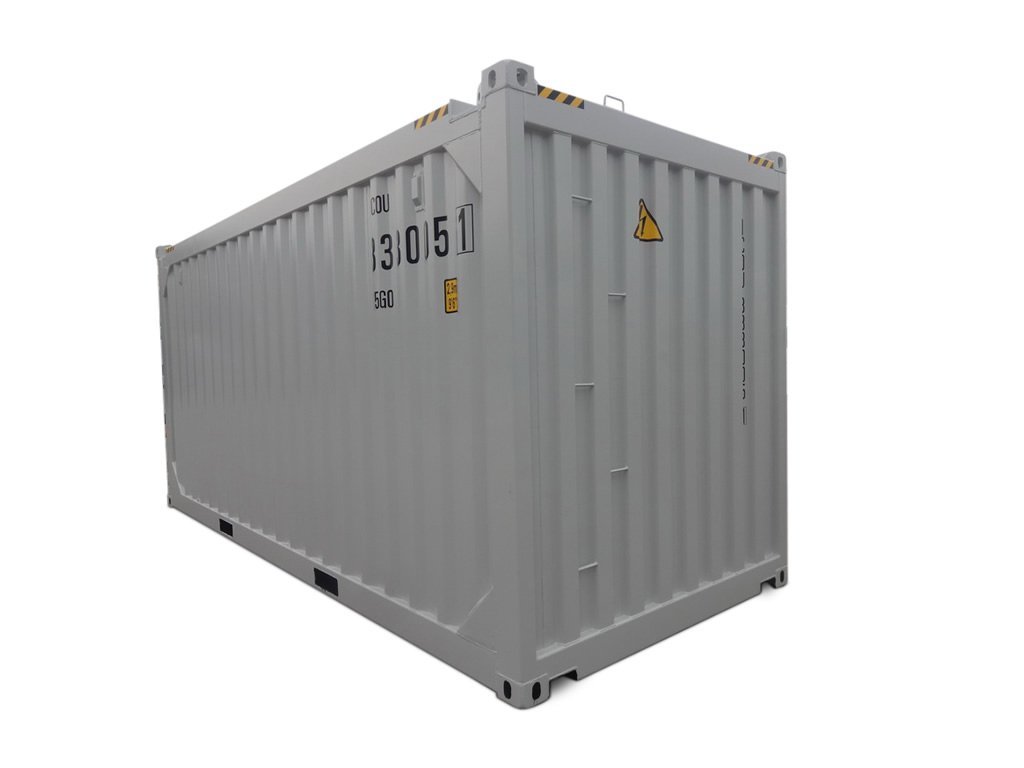

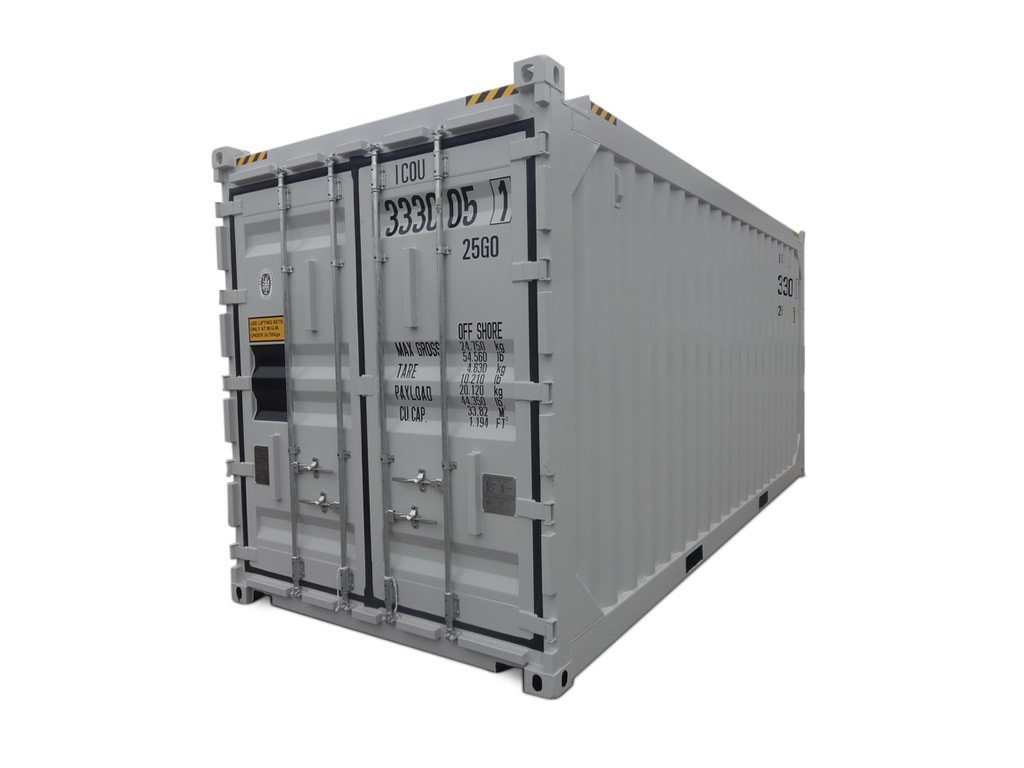

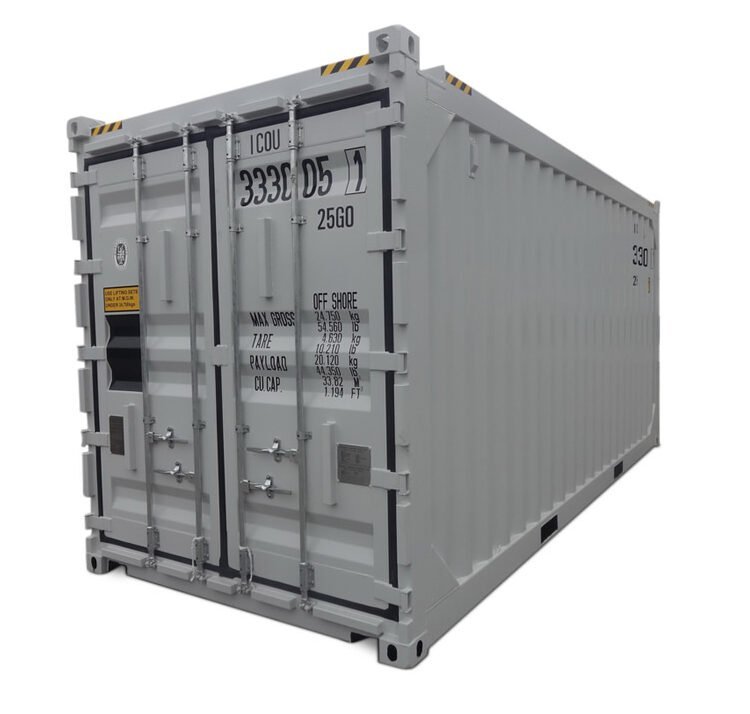

20ft Shipping Containers High Cube

Like all offshore containers, it is built in a not particularly robust manner and intended for use on the high seas.

• Rooftop padeyes are used to attach slings that are included on delivery. This allows the units to be lifted on board, even if they are filled with goods.
• The typical fields of use of these containers are oil and gas platforms. Where a container is intended to be used on board one of these rigs or ships, it must meet the requirements of an offshore container.

Dimensions and weight

External dimensions   OF                          US

Length                            6.058 mm             19.875 feet

Width                             2.438 mm             8 feet

Height                            2.896 mm             9ft 6in

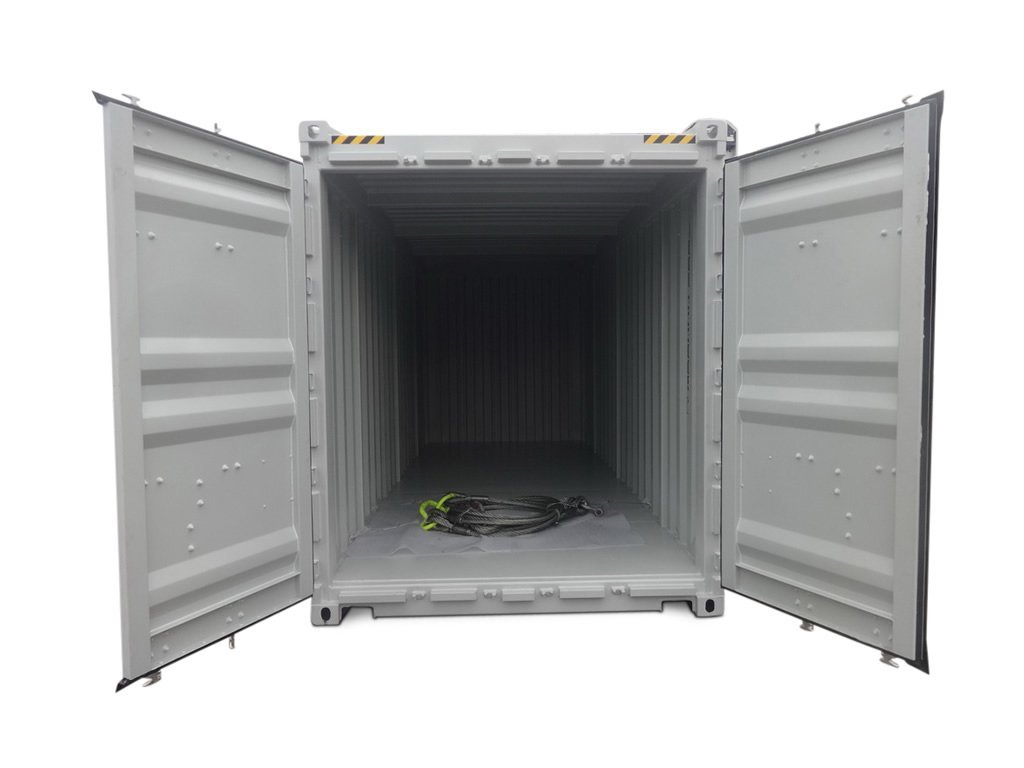

Internal dimensions   OF                          US

Length                            5.892 mm             19.331 feet

Width                             2,284 mm             7.493 feet

Height                            2.513 mm             8.245 feet

Door opening               OF                          US

Width                             2.230 mm             7.31 feet

Height                            2.419 mm             7.936 feet

Notes                             OF                          US

Max. Raw weight         24.750 kg              54.560 pounds

Tare                                4.630 kg                Pound10

Payload                         20,120 kilograms Pound44.350

Int. Capacity of cubes 33.82 m3               1.194 ft3
