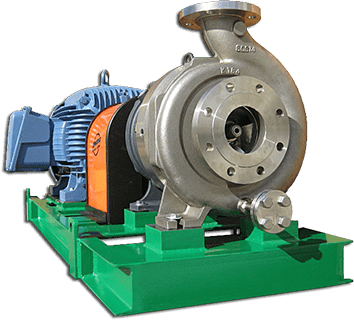

Magnetic Drive MAXP Series Pumps ANSI B73.3 Standards

Magnetic Drive MAXP Series Pumps ANSI B73.3 Standards are designed for ease of maintenance utilizing slip-fit construction, without shims, special tools, heated bushing holders or extensive training requirements. Everything that Magnatex does is done to help lower the total cost of owning our pumps and to increase our customer’s process reliability and profitability.

Advanced design features include the following

Single static gasket construction which eliminates all O-rings in the process fluid
Heavy-walled containment and optional secondary containment
Anti-contact ribs which prevent breach of containment
Long-wearing silicon carbide bearings
Provisions for thermocouple/RTD and vibration equipment
Fully enclosed high-efficiency impellers requiring no shimming or assembly adjustment

We develop a wide variety of static and process equipment for the petrochemical industry, providing solutions for reaction, filtering, vacuum drying and mixing, always following the most demanding quality standards that this industry requires.

Buy Magnetic Drive MAXP Series pumps

Experience In Motion
Hydrocarbon Processing Pumps
Refining • Petrochemical Processing

MAGNATEX® MAXP Series Specifications

Maximum Flow	2000 GPM
Maximum Head	470 FT
Liquid Temperature	-150° F to +800° F
Maximum Power	up to 200 HP
Connections	150lb RF std. or opt. 300lb RF ANSI Flanges
Bearings	SiC, SiC-X opt. for Upset or Dry-run Conditions
Working Pressure	285 psig
Impeller	Enclosed
Speeds	Up to 3550 rpm
Magnets	Neodymium or Samarium Cobalt for High Temp
Motor	NEMA or IEC Frame Mounted
Secondary Containment	Optional
Steam Jackets	Optional
External Flush	Optional
Recirculated Flush & Vent	Optional
Vortex Breakers	Optional for Improved Solids Handling
Centerline Mounted	Optional

Supplier of Choice to the Hydrocarbon Processing Industry
We offers the world’s most complete line of API 610 pumps with the widest range of hydraulic coverage, pressure and temperature capabilities. Its engineering expertise, applications know-how and installation experience are peerless. From 19th century lamp oil to the advent of the gasoline engine and the development of petrochemicals, Flowserve has proven itself to be the world leader in meeting the changing and demanding needs of hydrocarbon processing.

Performance Curves

Buy Magnetic Drive MAXP Series pumps Online

Liquid hydrocarbons and gas account are the essential energy source relying on pumps at every stage of production and transport. Typically the pumps specified comply with ISO 13709 (API 610) together with additional stringent customer-specific specifications. Many applications require custom engineered solutions and extensive testing to provide the required performance. Another common feature of many key upstream applications is the requirement for large, high-energy machines, with designs of up to 27 MW having already been put into service.

Buy Magnetic Drive MAXP Series pumps Online

Magnatex All-Metallic Pumps

The all-metallic design of Magnatex sealless pumps ensures rugged, durable application performance when product leakage is not acceptable.

Texel Pumps

Compact, PFA-lined Texel MTA series pumps excel in the most corrosive pumping applications. These reliable pumps provide a lifetime of efficient, low maintenance operation at a low total cost of ownership.

In difficult applications where leakage is not an option, superior design and service ensure that Magnatex pumps perform at peak levels with minimum maintenance and downtime for an extremely low overall cost of ownership. Magnatex sealless, mag-drive pumps are used extensively in the following process industries:

Chemical Process
Petrochemical
Refinery
Pharmaceutical
Textile
Food and Beverage
Power Generation
Semiconductor
General Industrial
OEM packages

Magnatex Pumps Capabilities
Proven Technology.

Superior design technology is what enables Magnatex and Magnatex/Texel® sealless, magnetically driven pumps to perform at peak levels in tens of thousands of demanding applications worldwide. Magnatex Pumps pumps are engineered to handle the rigorous challenges of low to high temperature liquids as well as the most corrosive, toxic and noxious applications without risking leakage into the environment.

Buy Magnetic Drive MAXP Series pumps

Our straddle mounted inner magnet ceramic bearing system is what sets Magnatex Pumps apart from our competitors. The straddle mounted bearing design significantly reduces bearing wear, lowers shaft loads and increases bearing life. Pictured is a comparison between the Magnatex straddle mounted design where the inner magnet assembly is supported by bearings on both sides of the magnet, and a typical overhung, cantilevered design common to almost all of our competitors. The solid red line indicates static shaft deflections. As you can see, the Magnatex design results in greatly decreased stress levels and bending moments on the shaft.
